GuardRite® Dok-Gate
Benefits
Looking to protect your employees from falling off the loading dock?
Is an ergonomic solution important to your company?

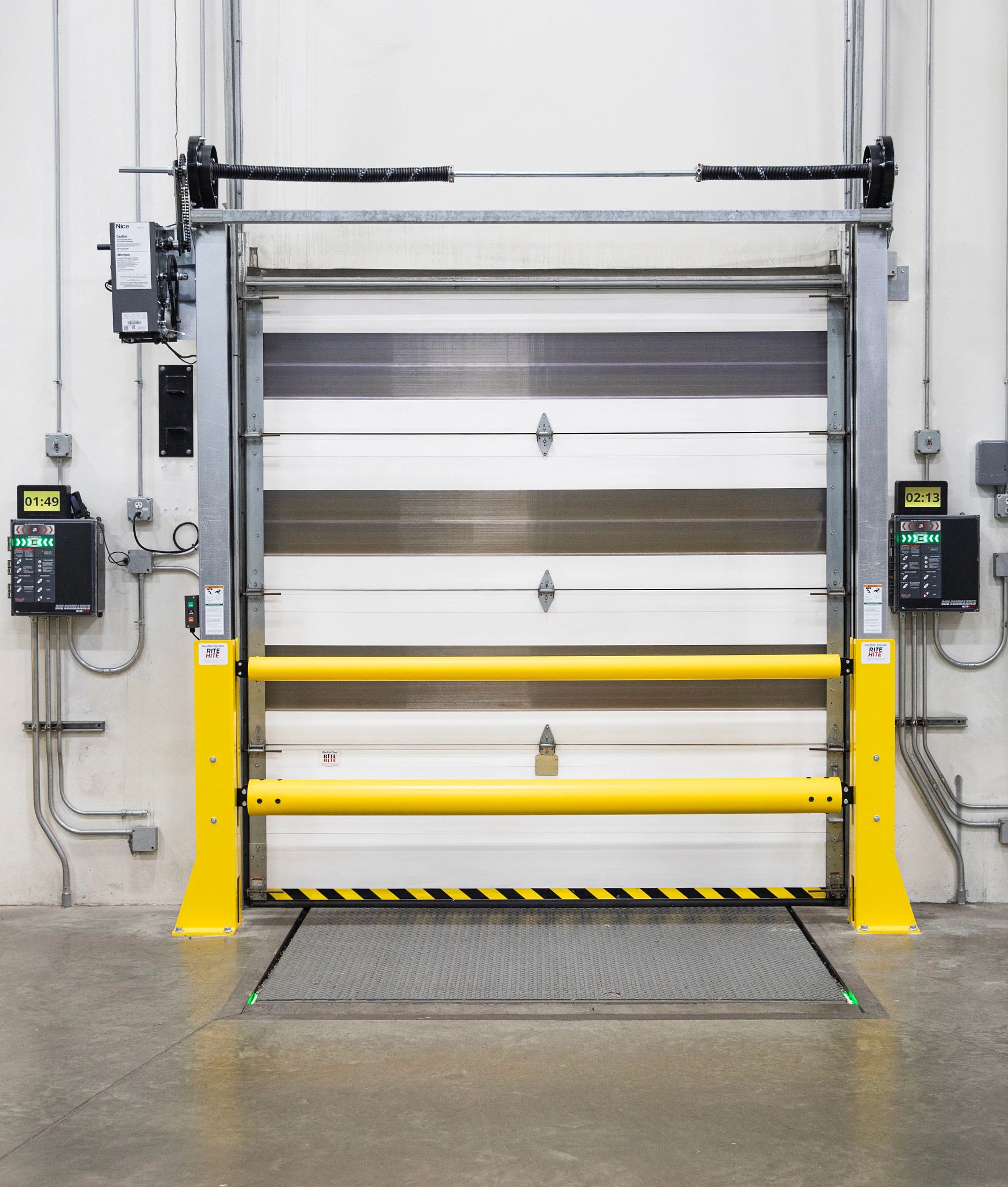

The GuardRite Dok-Gate is a powered, vertical-rising safety gate with two polymer rails that helps protect material handling equipment and pedestrians from the dangerous loading dock drop-off.
- OSHA-compliant dock gate: Meets OSHA standards for fall protection and walking-working surfaces.
- Ergonomically friendly: Eliminates manual opening and closing with push-button operation.
- Safety and reliability: Polypropelene rails can withstand incidental impacts with little to no damage.
The GuardRite Dok-Gate is critical to a total dock safety solution.
Ergonomically friendly, Rite-Hite's latest innovation in loading dock safety equipment helps protect material handling equipment and pedestrians from the dock-drop off.
- OSHA-compliant design meets the standards for fall protection and walking-working surfaces to help ensure maximum safety and compliance at the loading dock.
- Simple, push-button powered operation helps reduce physical strain on workers, reducing ergonomic-related injuries.
- Reverse capabilities with thru-beam photo eyes mounted at 5" (127 mm) above the floor trigger the gate to reverse when obstructed.
- Let fresh air into a facility with open loading dock doors while still protecting personnel against falls.
Additional Dock Safety Products
- Hazard Recognition and Control helps protect pedestrians working in and around hazardous environments, incorporating light communication and safe maintenance solutions.
- Interlock capabilities facilitate integration with other loading dock equipment, including Dok-Lok® Vehicle Restraints, to create a safe sequence of operations.
- Additional Safety by incorporating Safe-T-Lip® Dock Levelers at the loading dock which help to protect forklifts from rolling or driving off the edge of the 4' loading dock.
Choose a safety barrier that is designed to handle forklift impacts.
The GuardRite Dok-Gate's polypropylene rails can withstand incidental impacts from forklifts up to 30,000 lbs. (13,607 kg) for long-lasting protection and lower overall maintenance costs. Its design and materials also help prevent forklifts from damaging the overhead door and its frame.
Product Specifications:
- One 4" (102 mm) diameter rail centered at 42" (1067 mm) and one 6" (152 mm) diameter rail centered at 21" (533 mm), both extruded from safety yellow, impact-modified polypropylene
- Galvanized steel side frames with brush seal
- Two 48" (1219 mm) high steel Warden® door tracks with safety yellow, powder-coat finish
- Thru-beam photo eyes mounted at 5" (127 mm) above the floor
- Galvanized steel crossmember with two torsion springs
- One jackshaft operator with three button control station
- Manual operation is available

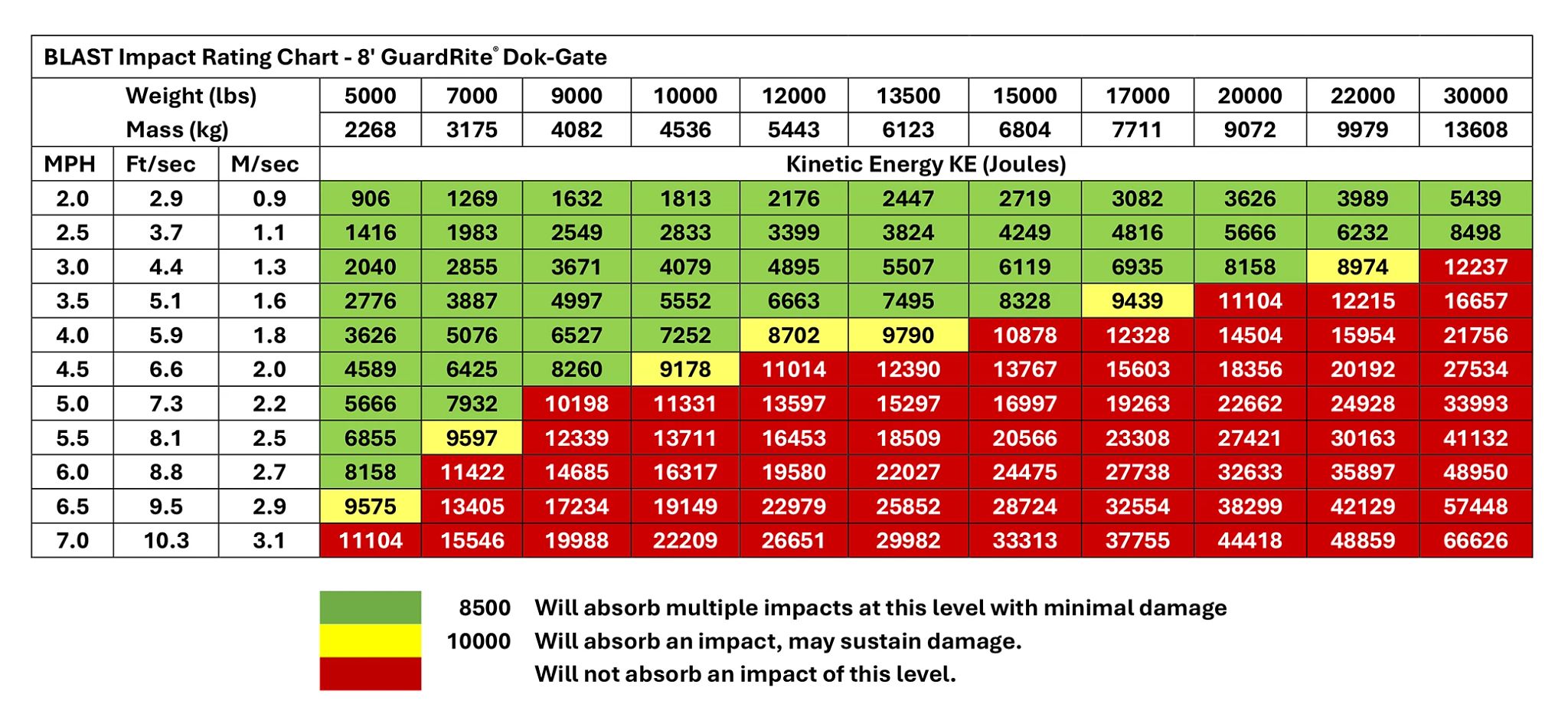

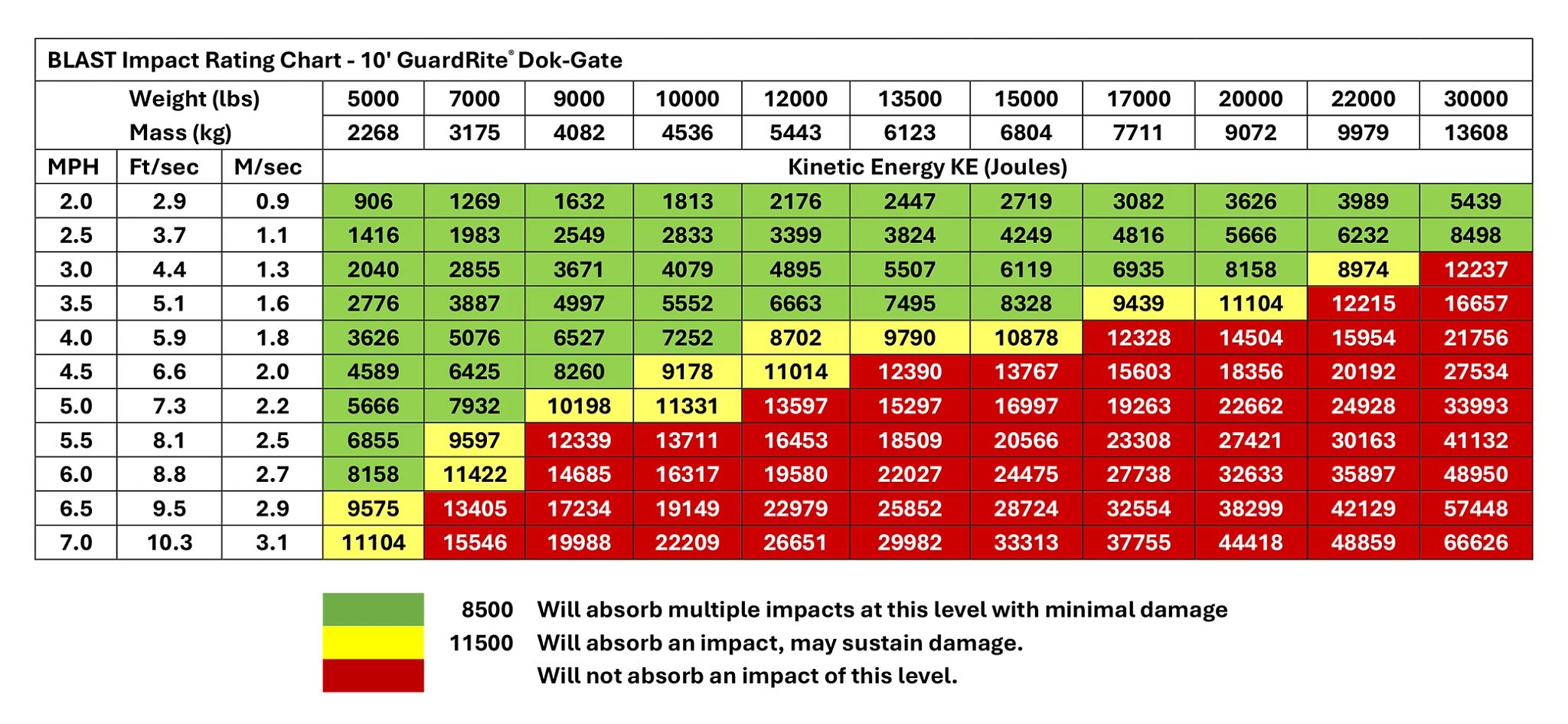

Consult The Science of Safety Whitepaper for a complete explanation of the information contained within this chart.
A safe, ergonomic, and reliable safety gate for your loading dock.
The GuardRite Dok-Gate can be used on loading docks at distribution centers, manufacturing facilities or warehouses for any industry or need, including:
Questions about how this product can help overcome your challenges? Contact us today to learn more about how the GuardRite Dok-Gate can transform operations.
