Safe-T-Pit®

Dual sensors immediately disables leveler operation if motion is detected in pit
Helps prevent pedestrian crushing hazards
Anti-debris design and sensor placement for easy pit cleaning

Continuous Monitoring

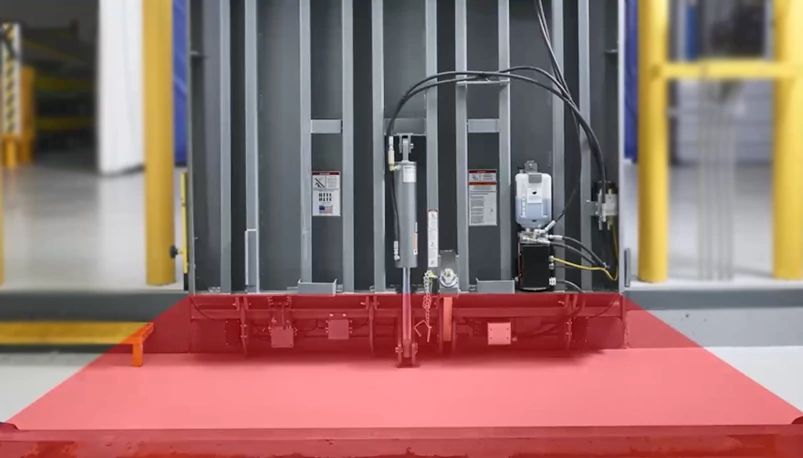

The Safe-T-Pit® provides enhanced pit protection for pedestrians while the vertical dock leveler is in the upright stored position. Dual sensors monitor the dock leveler pit and disable operation if motion is detected, helping keep workers safe during maintenance, cleaning or every day operation.

Request a Quote

Drive-Thru Application

OSHA has identified semi-tractor trailers as the second leading cause of backover fatalities in the United States. Loading docks equipped for a drive-thru approach allow trailer doors to open inside the facility, helping prevent fatalities by keeping boots off the ground. This also helps increase supply chain integrity and security, as the seals are also broken and reapplied inside the building.

MAXIMIZE THE INTEGRITY OF YOUR SUPPLY CHAIN

RHV Mast: Combination Controls

Simple, centralized panel integrates the controls of multiple pieces of operating equipment: including a Dok-Lok® vehicle restraint, dock leveler, dock door, dock light and Rite-Vu™ Hazard Recognition and Control. The RHV Mast, when positioned alongside the vertical dock leveler, offers several key benefits in a warehouse or loading dock environment:

  • Eliminates wall clutter
  • Enhances safety by keeping the operator at the control panel with full line-of-sight to the leveler pit
  • Programmable to provide safe sequence of operations



Learn More

Vertical Storing Dock Levelers

Hydraulic vertical dock leveler’s upright position in the drive-thru application helps protect cargo inside the facility by limiting points of entry and eliminating environmental infiltration, which could lead to contamination. From traditional applications, to high performance, to full-width trailer access, Rite-Hite® offers a variety of vertical storing dock leveler options to best fit your facility's demands.

Discover More

Food Safety Modernization Act (FSMA) Compliance

Vertical storing levelers give workers easy access to the pit for maintenance and cleaning with all components mounted off the ground, on the rear pit wall. This design allows for a more thorough wash down application and better compliance with Food Safety Modernization Act (FSMA) regulations.

Benefits

  • Dual Motion Sensors - Mounted on pit wall, to the right and left of the dock leveler. Each sensor scans the pit with a field that is the width of the leveler (plus an inch on each side) by ~6 ft. in front of the leveler. Sensors are active until the leveler platform is lowered to ~45 degrees.
  • Safe Sequence of Operation - Safe-T-Pit is integrated into the vertical leveler combination controls to help prevent the leveler raising or lowering when motion is detected in the pit.
  • Automatic Deactivation - Leveler operation is disabled upon motion detection, restored to upright position, and leveler controls are suspended for 5 seconds until after the pit is cleared.
  • “Fail Safe” Wiring - If one or both sensors are disconnected in anyway (loose wire, unplugged, severed cord, etc.) the vertical storing leveler is inoperable.
  • Access Brace - Standard on all continuous pit applications, adding an additional layer of pedestrian safety.
  • Durable Design - Built to meet IP66 and NEMA 4 rating standards, Safe-T-Pit can withstand harsh environments, such as in cold storage facilities, and most wash down applications.
  • Tapered Sensor Enclosure - Anti-debris design and sensor placement for easy pit access and cleaning.
  • Upgrade or Retrofit - Sensors can be added after installation on most vertical dock leveler control options.
  • Ease of Installation - Sensors come fully assembled, only requiring wiring and bolting to dock leveler pit wall.

Rite-Hite warranties are backed by an exclusive network of representatives and industry leading planned maintenance programs, helping to ensure that products perform to their full potential.

  • 5-year parts
  • 1-year labor and travel
  • 12-Month Limited Money-Back Guarantee of Customer Satisfaction

Gallery

RHV-4100: Continuous Pit w/ Safe-T-Pit & Easy Clean Stair
Safe T Pit Box
Safe T Pit Motion Sensor
